| Quantity: | |
|---|---|
As required
Hongqing
8421291090
structural characteristics：

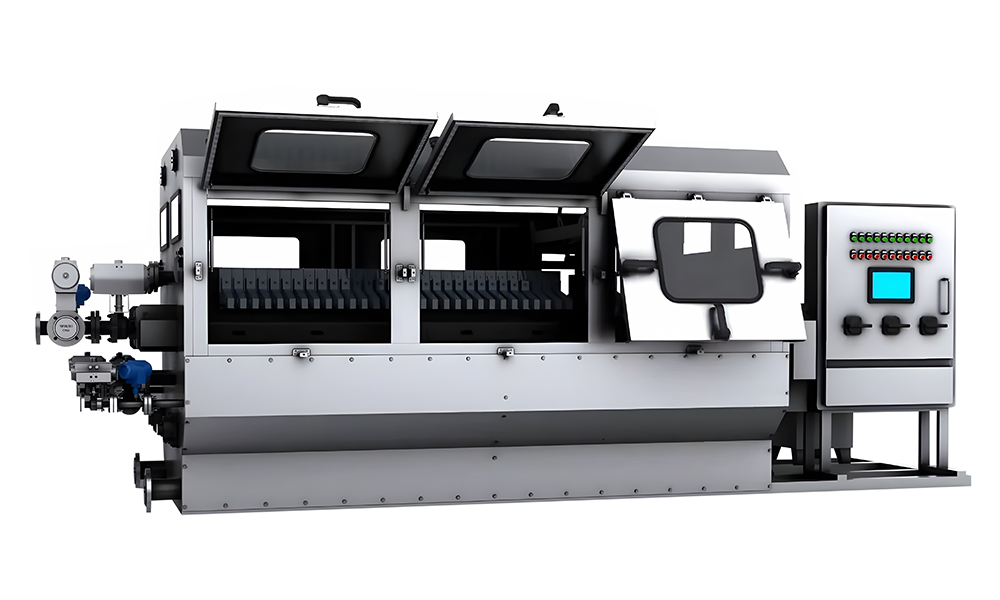

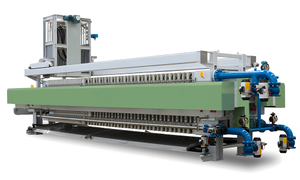

Taking the XARY30/800-UK embedded fully enclosed anti-corrosion and explosion-proof filter press as an example, its filter cloth adopts a design of "dovetail groove" embedded with sealing strips. The edge of the filter cloth is wrapped with sewn sealing strips and embedded in the filter plate groove, eliminating capillary leakage between the filter plates. At the same time, the inlet and outlet ports of the filter plate are designed with sealing, such as flange connections and corrosion-resistant rubber rings, to ensure no leakage throughout the entire process.
performance advantage：
Good sealing performance: It can achieve complete sealing throughout the entire operation process, effectively ensuring the safety of operators and reducing pollution to the operating environment.

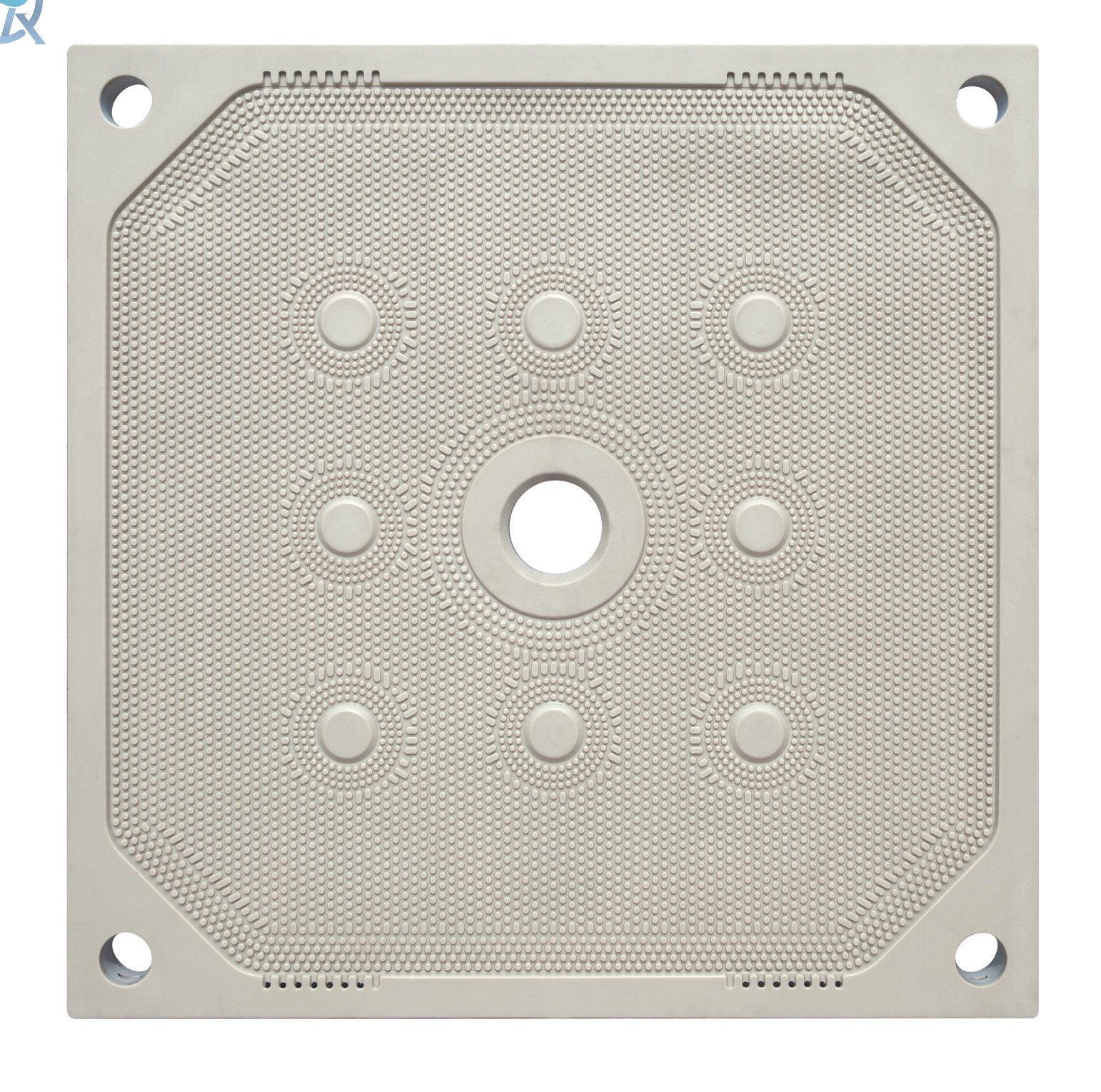

Anti corrosion and explosion-proof: The filter plate is often made of reinforced polypropylene (PP) material, which has high compressive strength and is resistant to acid and alkali corrosion. The surface of the frame is treated with anti-corrosion, and the hydraulic oil pipes and seals are made of corrosion-resistant materials. The whole machine can also meet explosion-proof standards and is suitable for flammable and explosive environments.
High degree of automation: equipped with hydraulic automatic clamping and automatic pressure holding system, expandable PLC fully automatic control, realizing automatic plate pulling, filter cloth cleaning, unloading flipping, remote monitoring and other functions, reducing manual intervention and improving continuous production efficiency.
• Easy to clean: Some models have washable filtration forms, which can be neutralized and cleaned with compressed air or high-pressure washing water after filtration, and also facilitate the cleaning of filter cloth, reducing manual maintenance.
Application field：

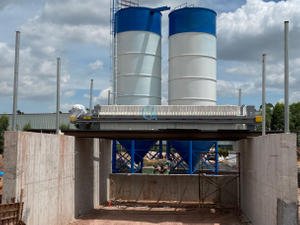

Fully enclosed leak free filter presses are widely used in industries such as chemical and petrochemical, environmental engineering, mining and metallurgy, food and pharmaceuticals, etc. They are suitable for processing various materials such as corrosive solutions, organic solvents, municipal sludge, tailings slurry, fruit juice, and medicinal liquids. They are particularly suitable for scenarios that require extremely high purity and safety, such as lithium battery material recovery and semiconductor cleaning solution treatment.
structural characteristics：
Taking the XARY30/800-UK embedded fully enclosed anti-corrosion and explosion-proof filter press as an example, its filter cloth adopts a design of "dovetail groove" embedded with sealing strips. The edge of the filter cloth is wrapped with sewn sealing strips and embedded in the filter plate groove, eliminating capillary leakage between the filter plates. At the same time, the inlet and outlet ports of the filter plate are designed with sealing, such as flange connections and corrosion-resistant rubber rings, to ensure no leakage throughout the entire process.
performance advantage：
Good sealing performance: It can achieve complete sealing throughout the entire operation process, effectively ensuring the safety of operators and reducing pollution to the operating environment.
Anti corrosion and explosion-proof: The filter plate is often made of reinforced polypropylene (PP) material, which has high compressive strength and is resistant to acid and alkali corrosion. The surface of the frame is treated with anti-corrosion, and the hydraulic oil pipes and seals are made of corrosion-resistant materials. The whole machine can also meet explosion-proof standards and is suitable for flammable and explosive environments.
High degree of automation: equipped with hydraulic automatic clamping and automatic pressure holding system, expandable PLC fully automatic control, realizing automatic plate pulling, filter cloth cleaning, unloading flipping, remote monitoring and other functions, reducing manual intervention and improving continuous production efficiency.
• Easy to clean: Some models have washable filtration forms, which can be neutralized and cleaned with compressed air or high-pressure washing water after filtration, and also facilitate the cleaning of filter cloth, reducing manual maintenance.
Application field：
Fully enclosed leak free filter presses are widely used in industries such as chemical and petrochemical, environmental engineering, mining and metallurgy, food and pharmaceuticals, etc. They are suitable for processing various materials such as corrosive solutions, organic solvents, municipal sludge, tailings slurry, fruit juice, and medicinal liquids. They are particularly suitable for scenarios that require extremely high purity and safety, such as lithium battery material recovery and semiconductor cleaning solution treatment.
